Design of a link layer encryption system for Satellite Internet

WANG Yixuan, LI Yang, YANG Haoqi, LI Yan, LIU Yanmei

Journal of Cybersecurity, 2024, 2(4): 95-105. DOI: 10.20172/j.issn.2097-3136.240409

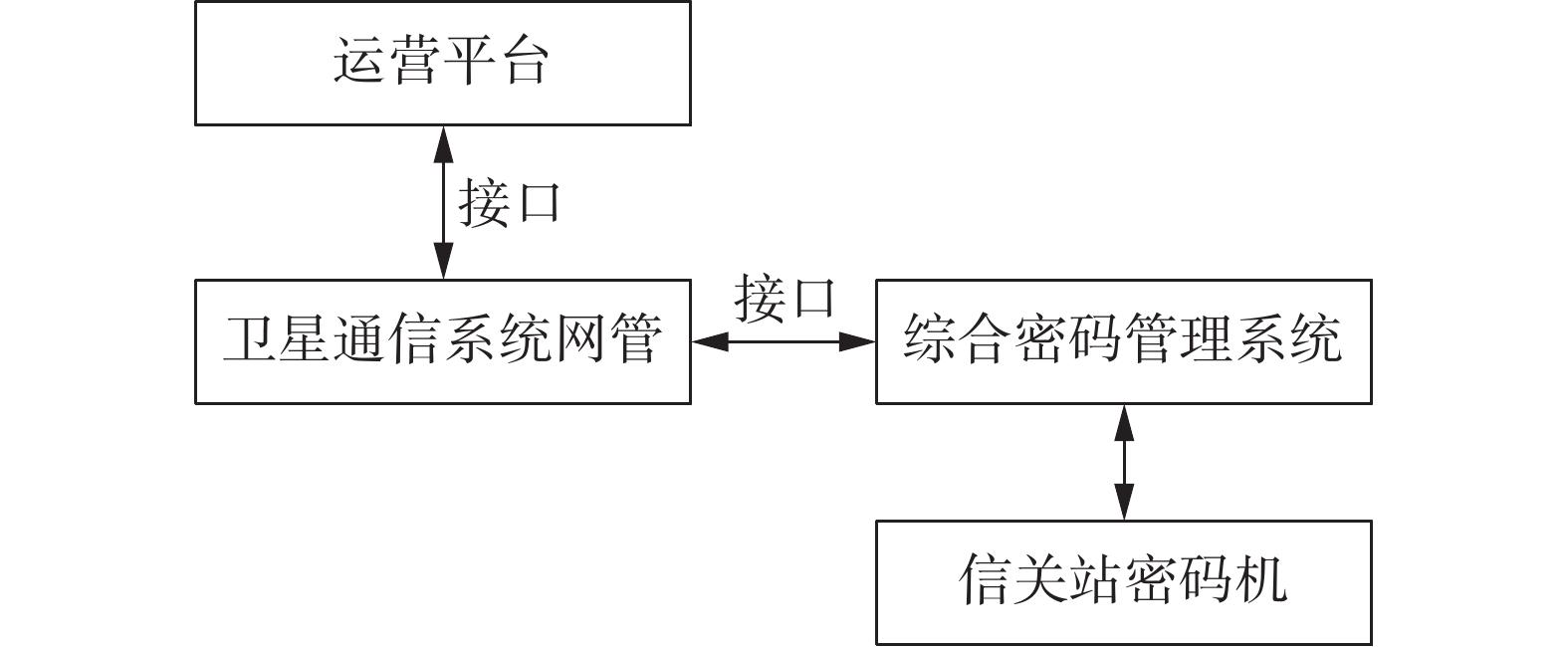

Fig.8 Schematic diagram of encrypted terminal creation

Other figure/table from this article

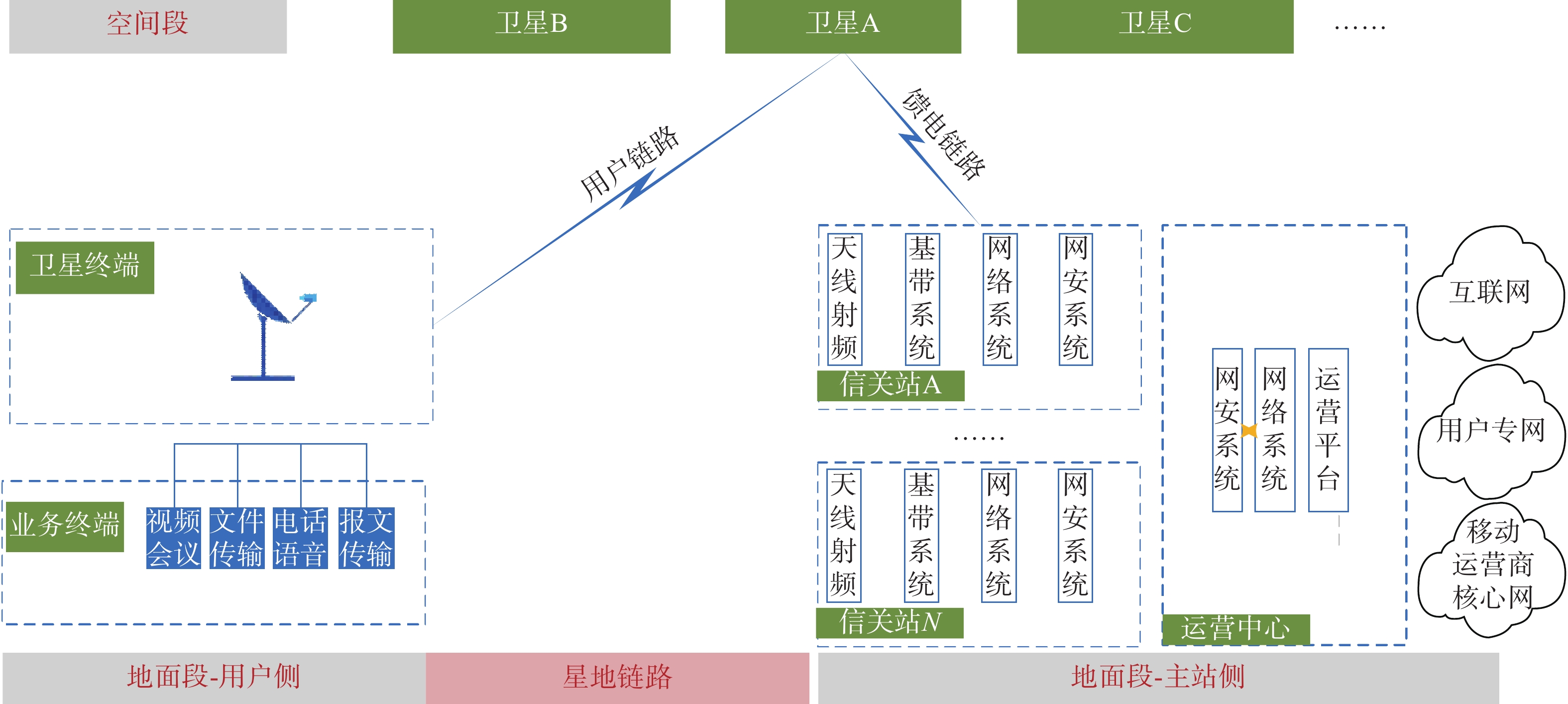

Fig.1 Simplified network model of Satellite Internet
Table 1 Protocols adopted by mainstream satellite communication systems

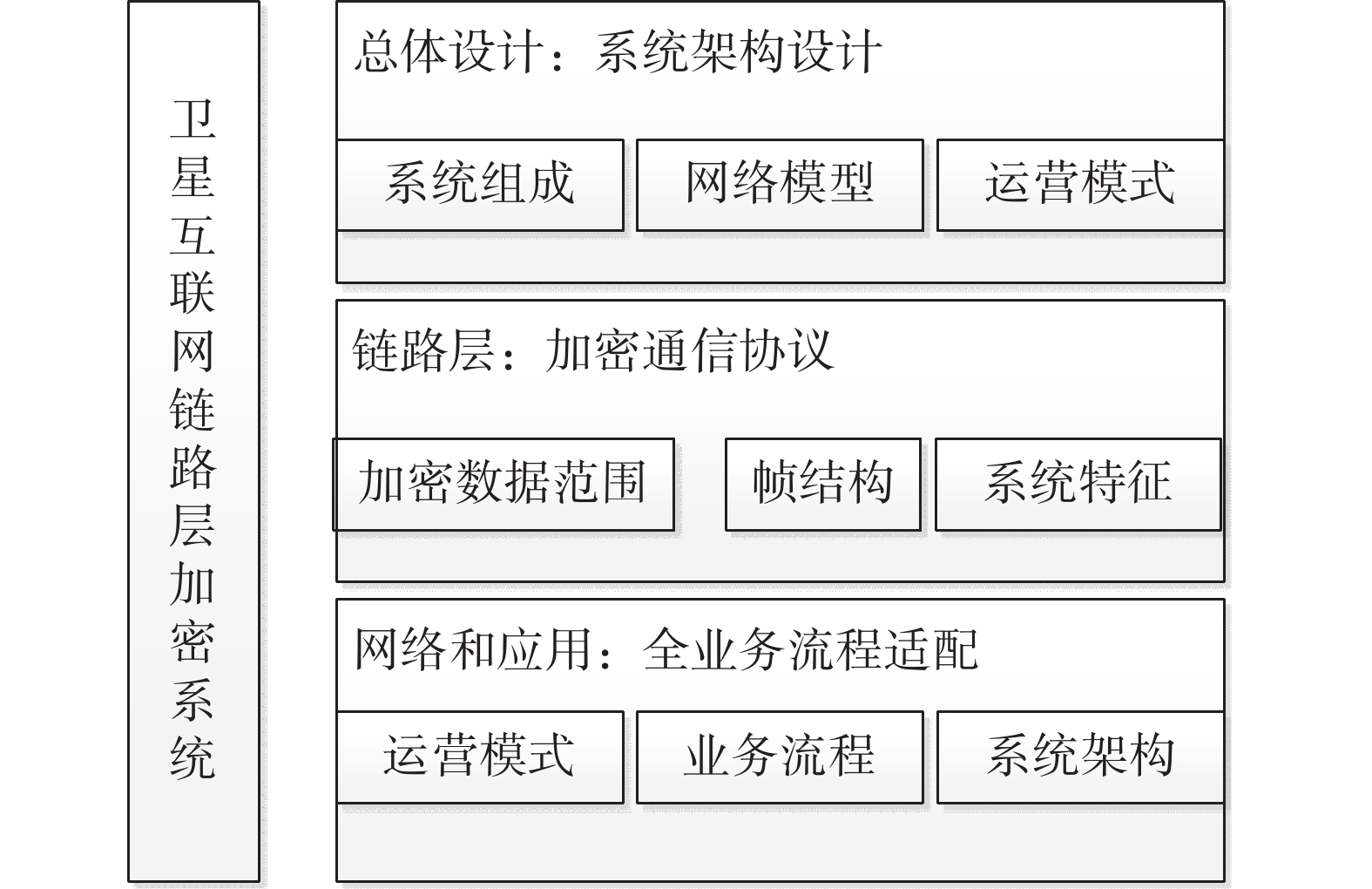

Fig.2 Overall block diagram of link layer encryption system for Satellite Internet network

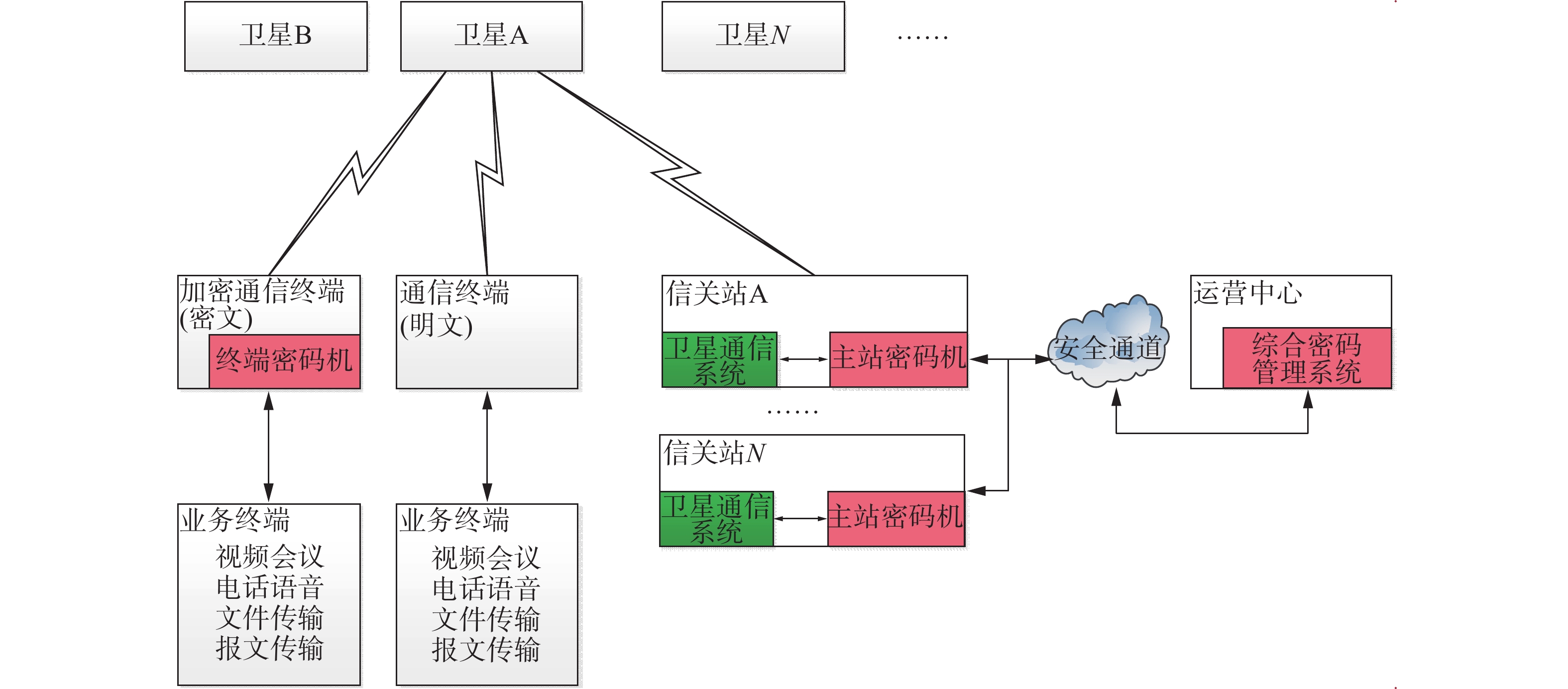

Fig.3 Schematic diagram of link layer encryption system architecture

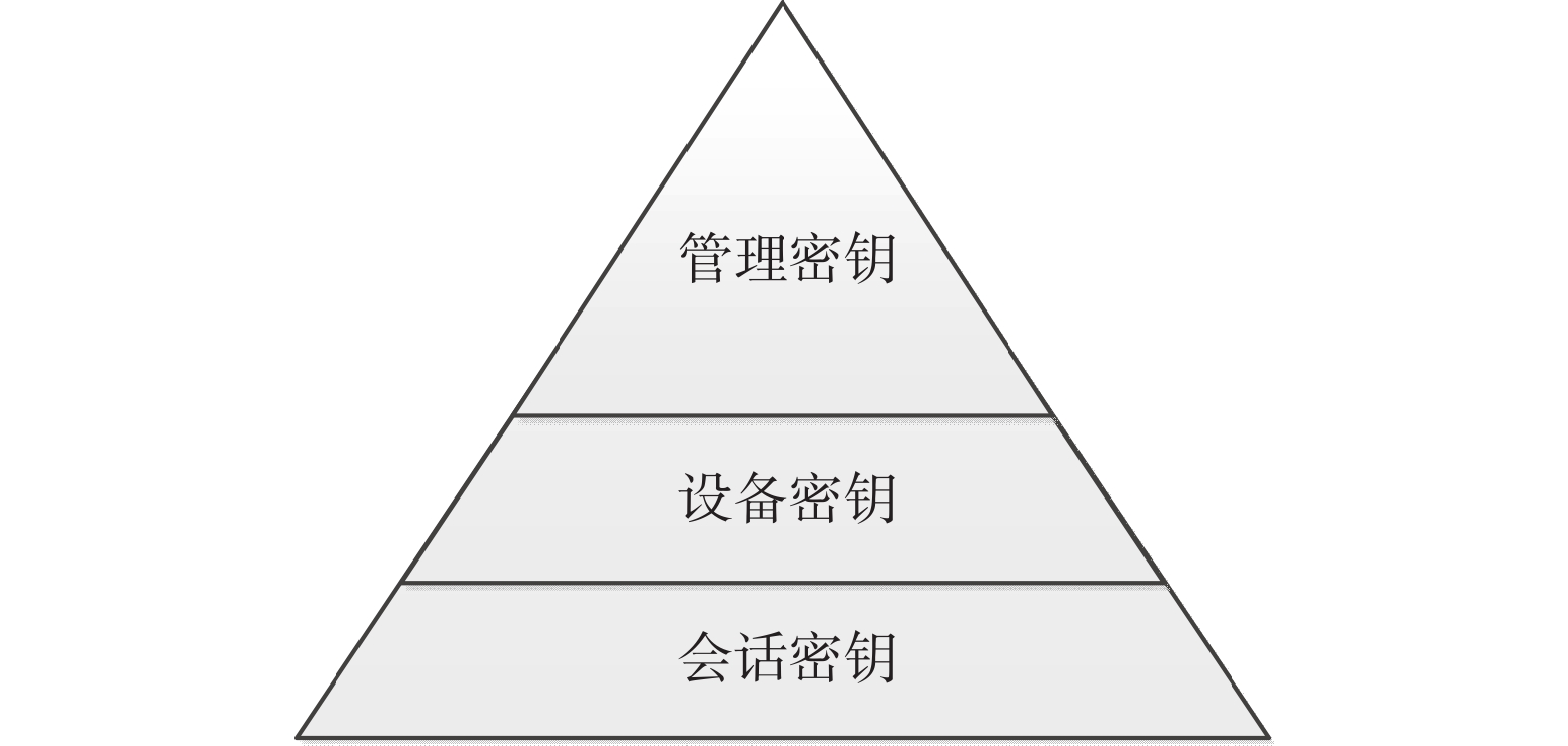

Fig.4 Key structure of encryption system

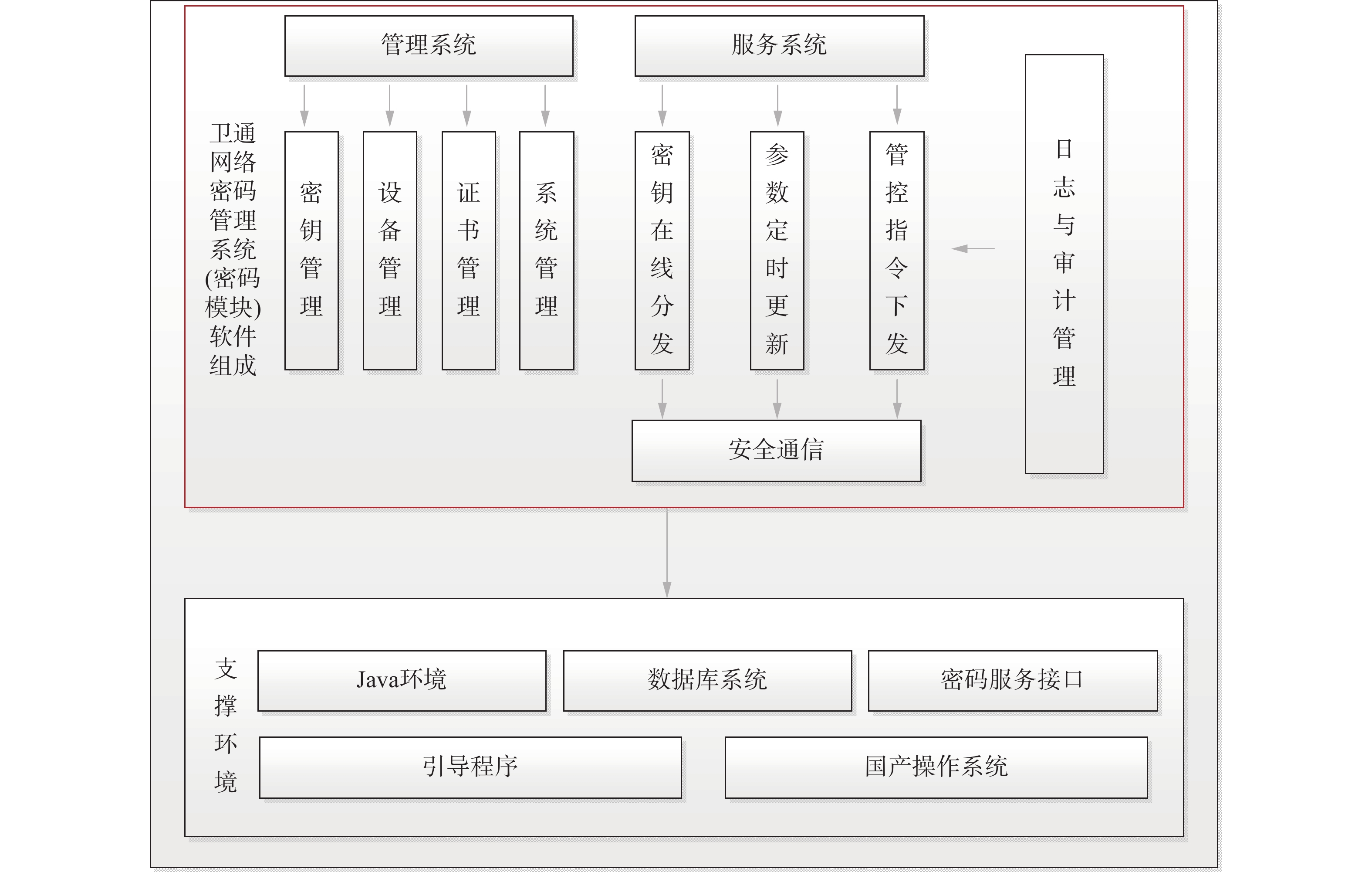

Fig.5 Functional schematic diagram of integrated cryptographic management system
Fig.6 BB Frame

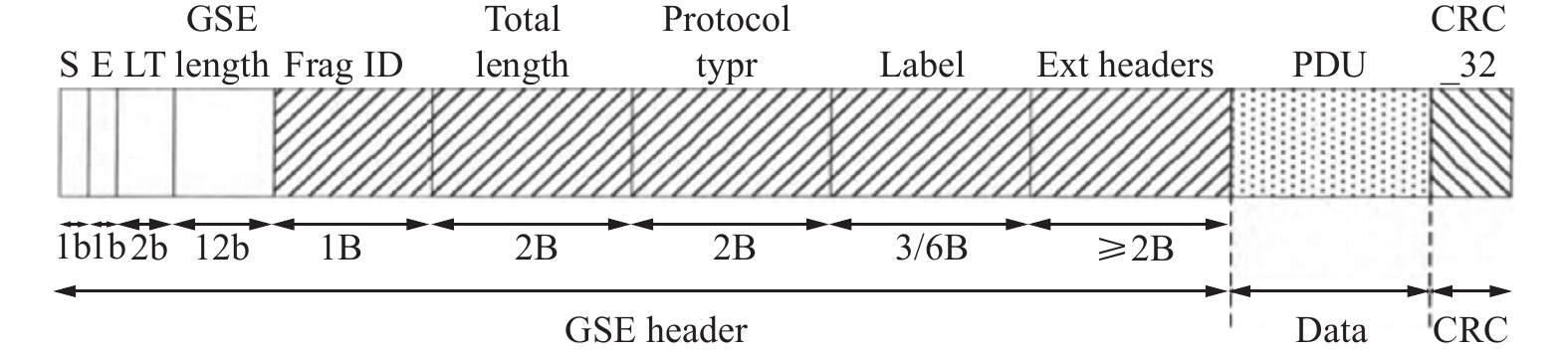

Fig.7 GSE Frame

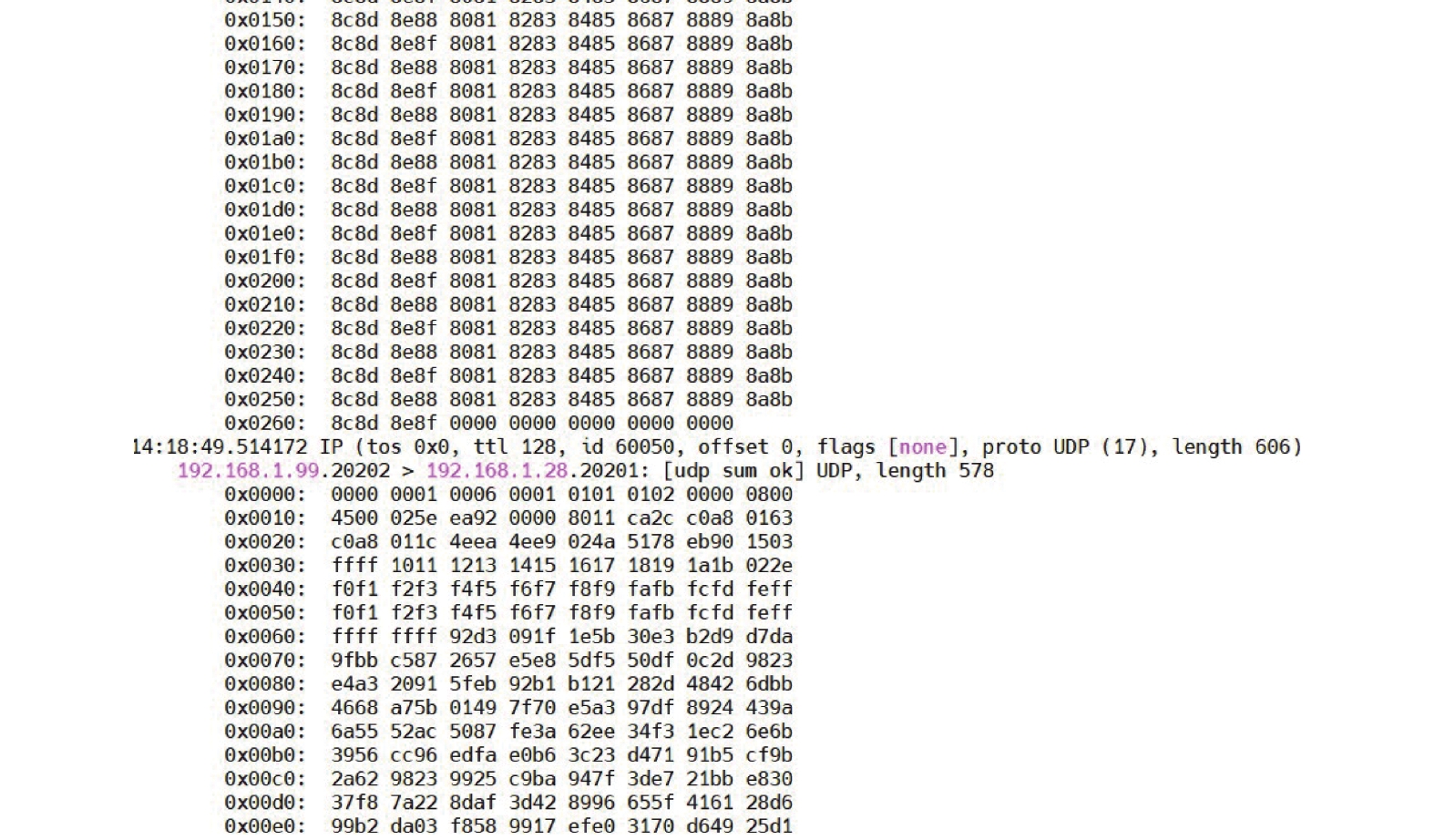

Fig.9 Captured encrypted data packets
